Estate Release Floor Plans: Three House Types

What this render has to do

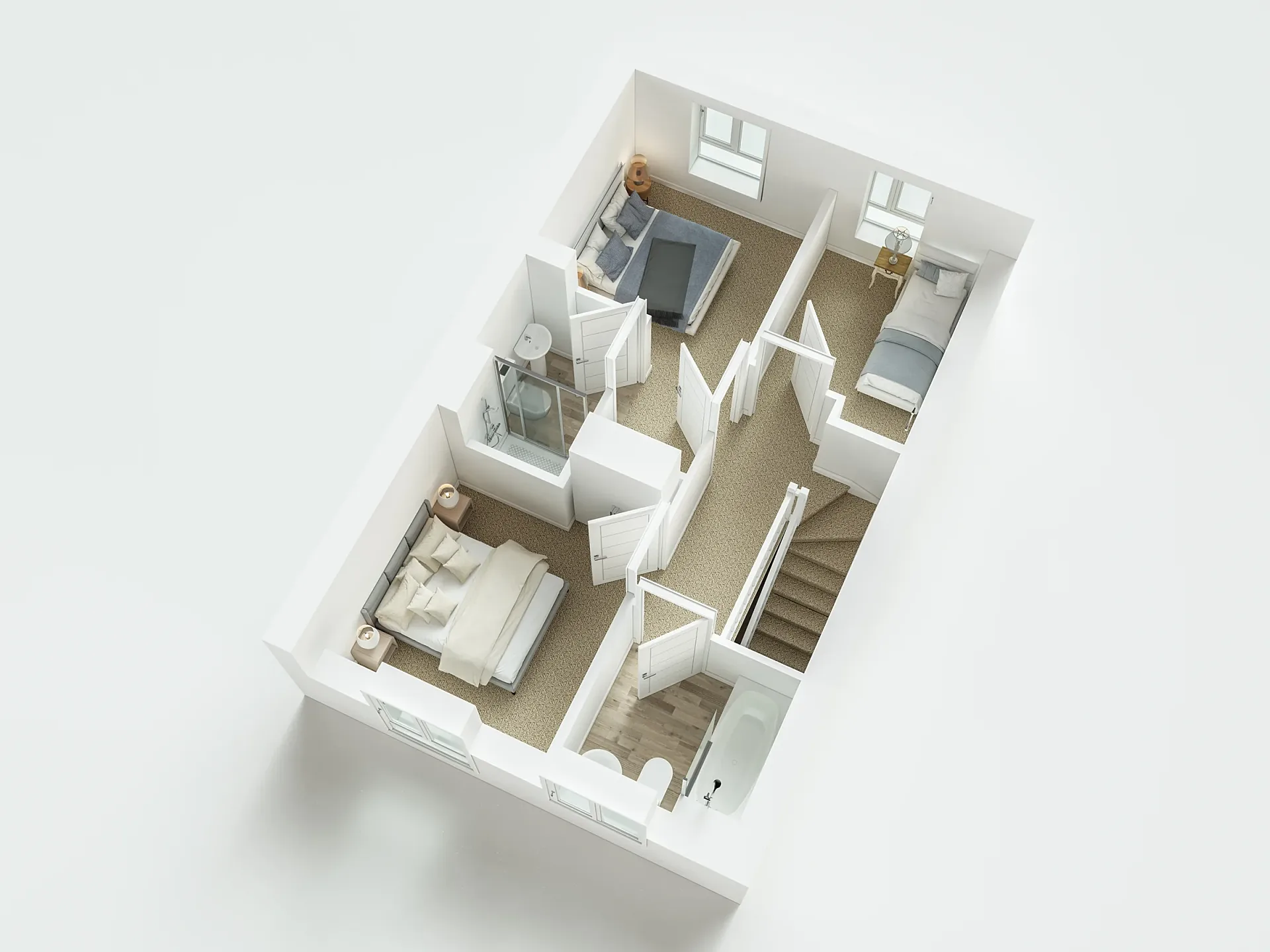

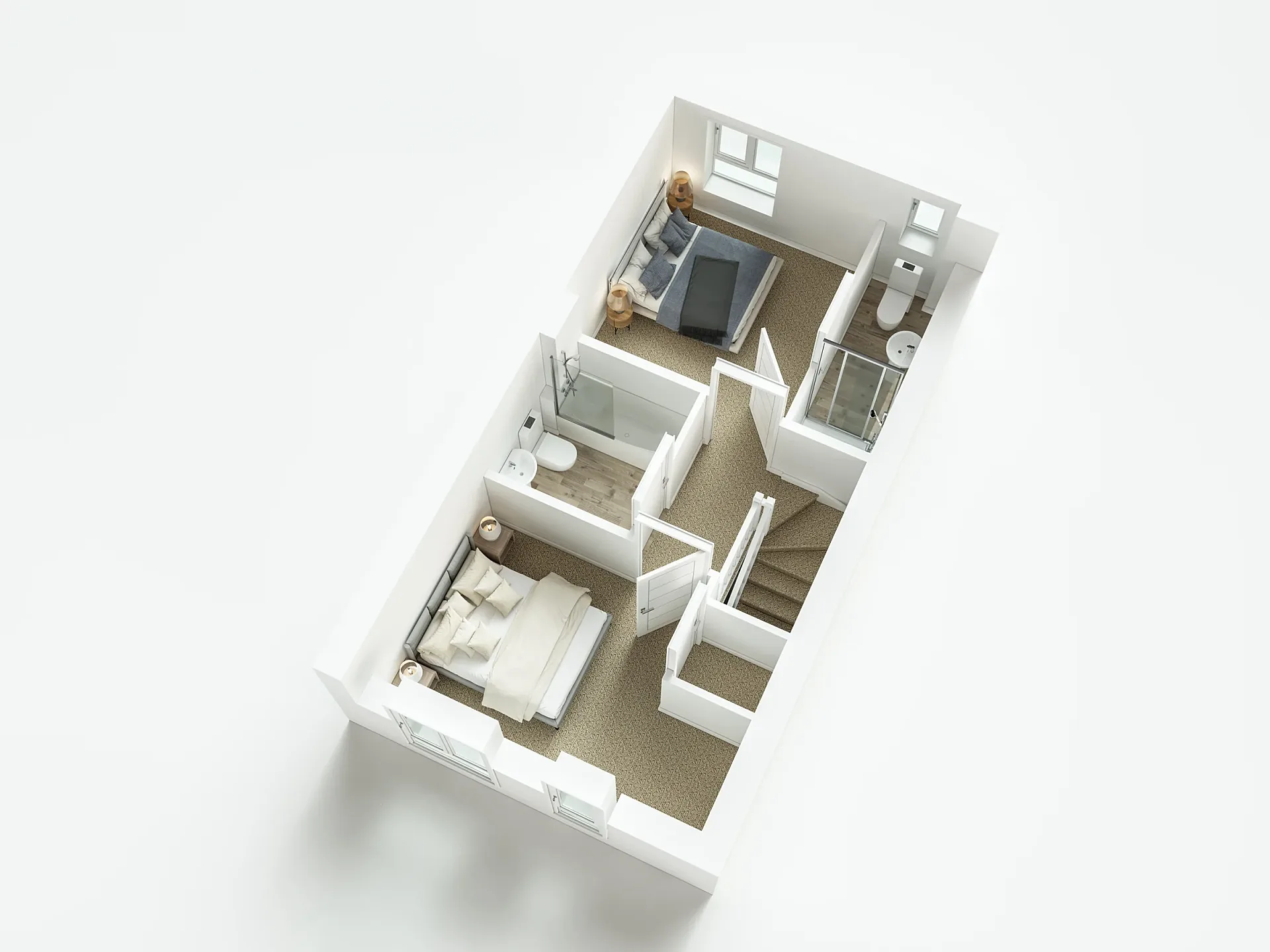

Buyers at an estate release ask one question early: which house type suits my household? These furnished 3D floor plans answer it at a glance for three types, a four-bedroom detached home and a two- and a three-bedroom semi-detached home, each split into a ground floor and a first floor. Walls are cut away in an angled view, so room sizes, stair positions and bathroom locations read without the practice a 2D drawing demands.

The plans also have to look like the display suite. Furniture and colour were taken from the builder's display homes, so a buyer who walks through the display and then opens the brochure sees the same beds, the same sofas and the same feel.

Materials, light and camera

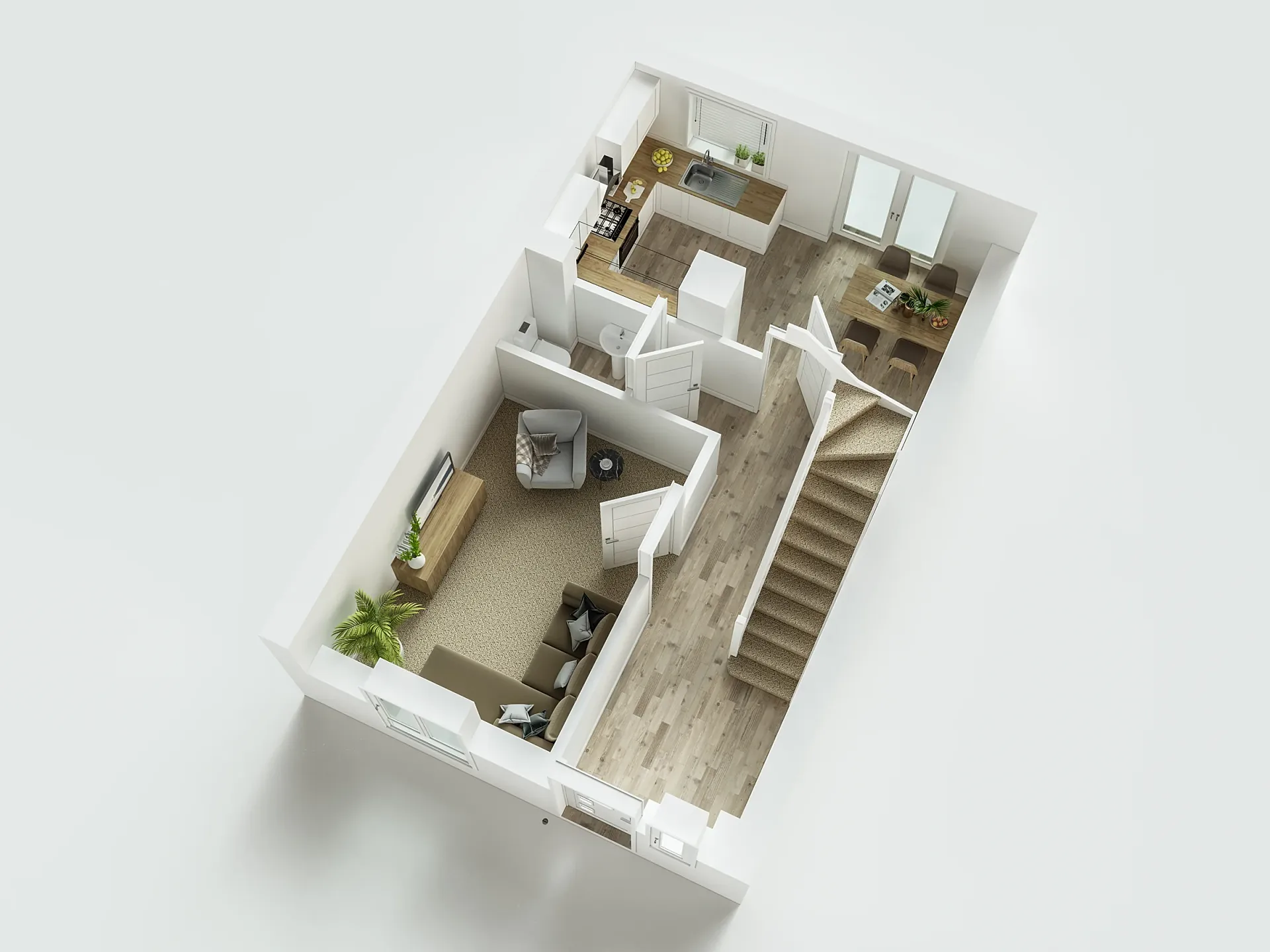

Each plan is viewed from above at an angle, with a soft contact shadow on a pale grey ground and even light that never hides a corner. Ground floors show plank-effect flooring and a staircase with timber treads; upper floors move to a warm carpet tone. Doors are swung open so you can see which way they hinge, and glass shower screens show where the ensuites sit.

Colour is used sparingly but purposefully. Green and navy bedspreads separate one bedroom from the next, the kitchen at the rear is picked out in dark units beside a round dining table, and living rooms carry a grey sofa and coffee tables. At thumbnail size on a portal, the layout still reads.

How a set like this is built

We build each plan from the builder's 2D drawings, extruding walls to a consistent height, placing openings and stairs exactly as drawn, then furnishing from supplied mood boards. A first issue went out for comment, and the amended set followed eleven days later. Six plans were delivered in two issues and signed off by the builder's marketing team.

Using one camera angle and one lighting set for every plan lets a buyer flip between house types and compare like with like. Our turnaround guide explains how issues are scheduled, and 3D rendering from house plans needs only the drawings and a reference mood to begin.

What to watch for in this type of brief

On this release one mood board never arrived, so the team styled that plan from its own judgement and offered to realign it afterwards. The builder kept it as delivered. That outcome is fine, but it shows why references are worth collecting early. Our guide for property developers covers the wider launch checklist.

• Send every house type's drawings and mood board in a single pack.
• State which floors you need, since each storey is a separate image.
• Say whether semi-detached pairs need mirrored versions, so the quote covers them.
• Confirm how the plans will sit beside house-and-land packages and brochures.
• Name one approver, so amendments arrive together instead of piecemeal.
